Removal and Repair of Clogged Deck Drain Line
Pyplok® Case Study: Removal and Repair of Clogged Deck Drain Line
| Location of the project | : | Shell Sarawak Berhad– E11 Complex |
| Scope of Work | : | Removal and Replacement of Clogged E11P-A Deck Drain Lines and to install new Pyplok® fittings |
| Piping Specs | : | 4”NPS Carbon Steel Line |
| Pyplok Fitting Used | : | 4”NPS Carbon Steel Straight Coupling (DP40N100G64) |
Pyplok® DP40N100G64 3D Model and Drawing
1. Cutting the pipe
Identifying the pipe to be cut
Surface Preparation to bare Metal

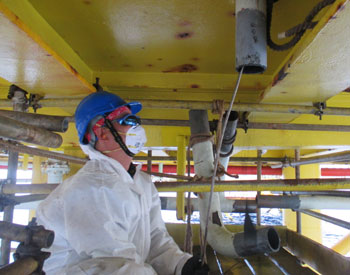

Cutting the pipe with hack saw2. De-clogging the line

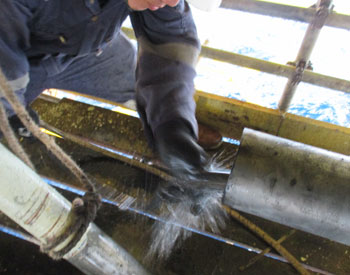

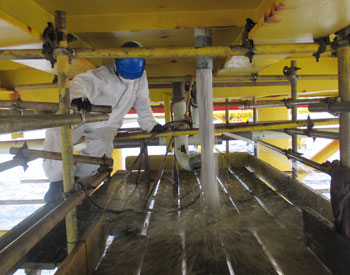

3. Pyplok® Installation
Marking on the pipe
Marking on the pipe
Placing the Pyplok® Fitting

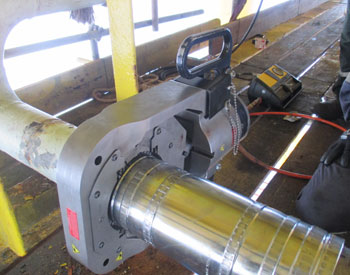

Crimping the Pyplok®

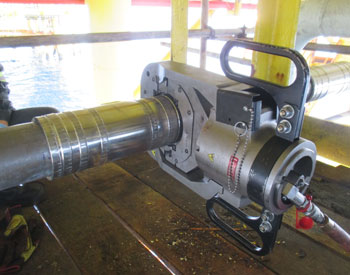

Crimping the Pyplok®
Swage Dia Inspection
Secondary Marking Inspection

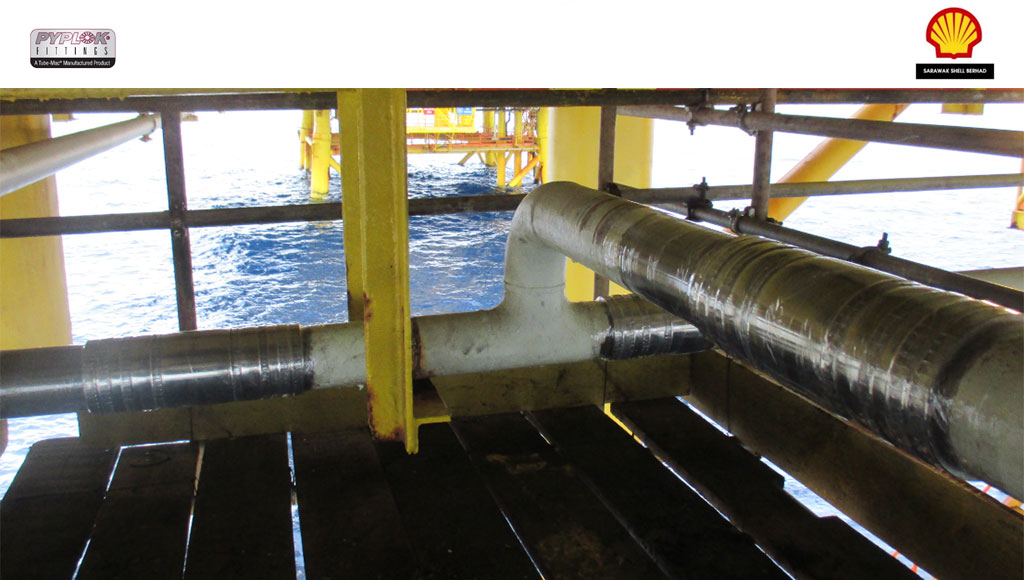

View of the Installed Pyplok® Fitting
